1080p 8 Port HDMI Extender Splitter over CAT5e / CAT6 L4100
Sale price
$34.90
Regular price $110.49
Skip to product information

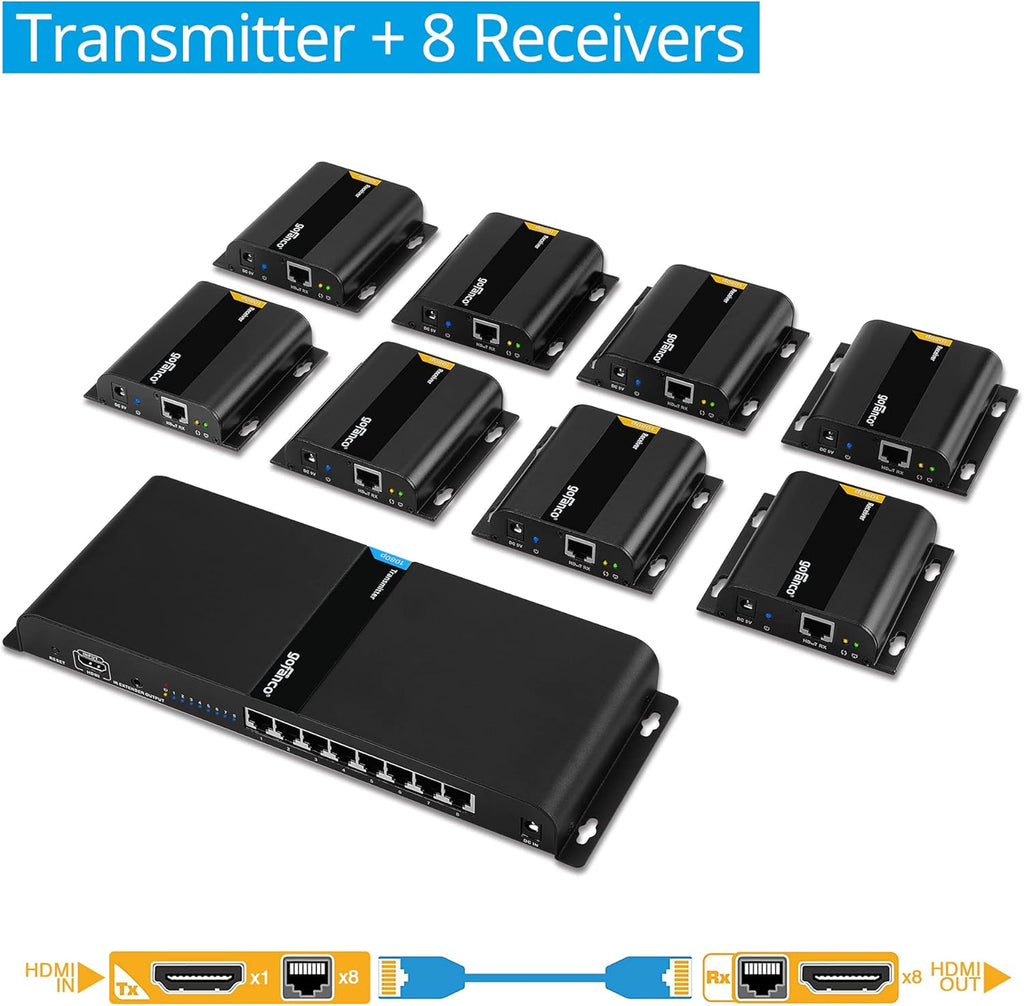

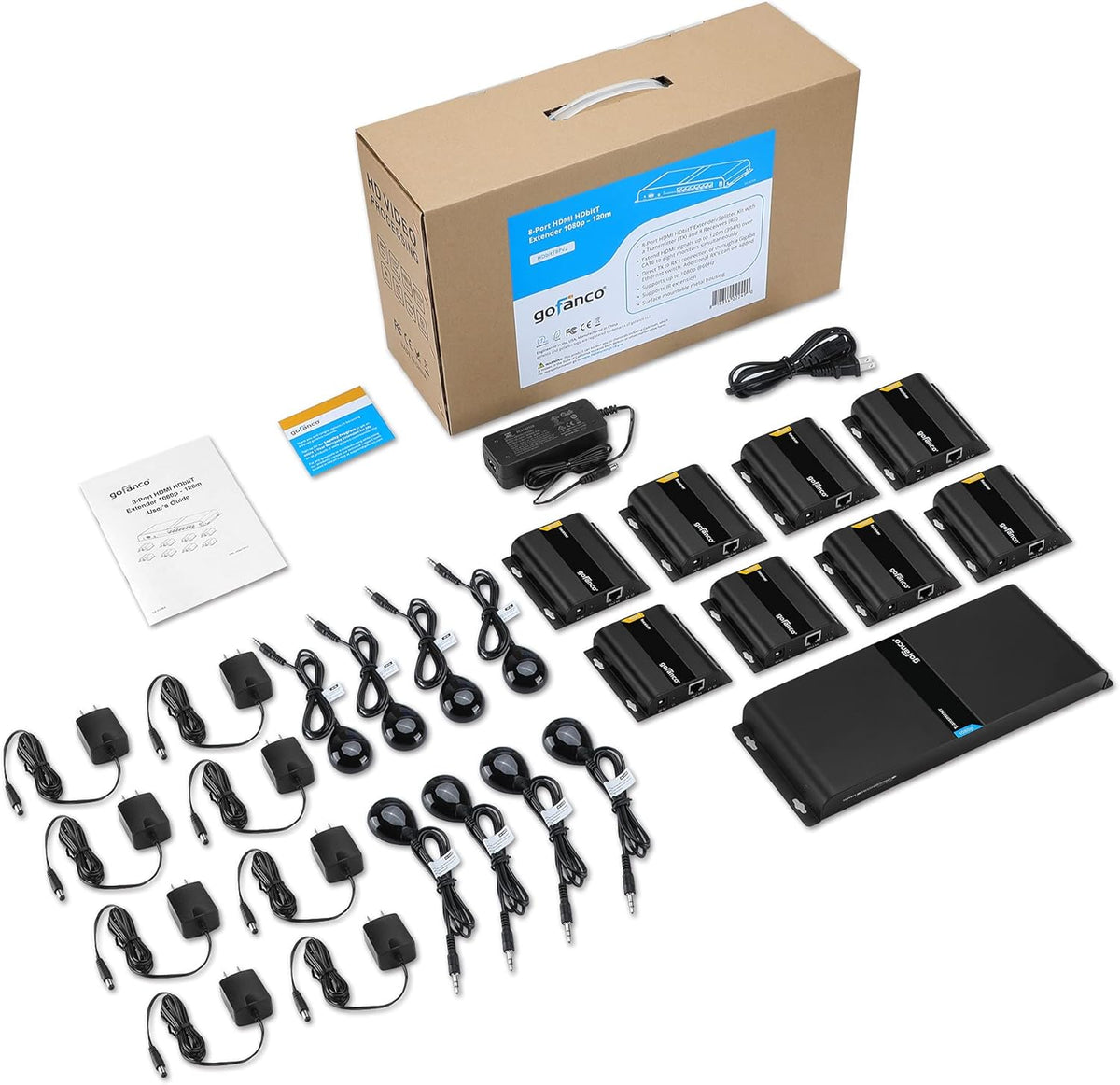

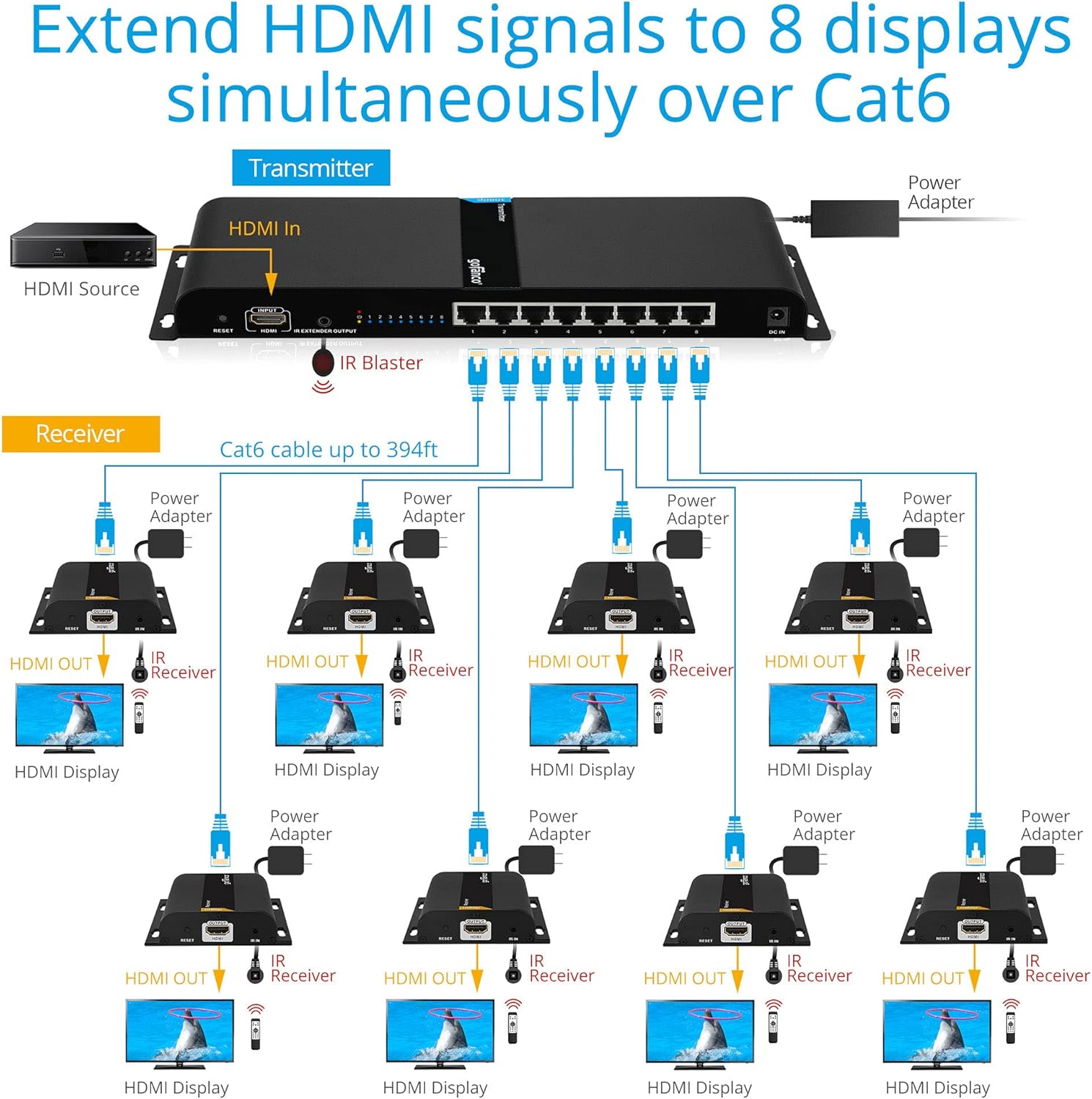

HDMI EXTENDER SPLITTER KIT �C Includes 1 Transmitter and 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 up to 394ft simultaneously. *Important*: HDbitT8Pv2 (this kit, version 2.0) is not backward compatible with the previous version and its receivers (RX). If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes

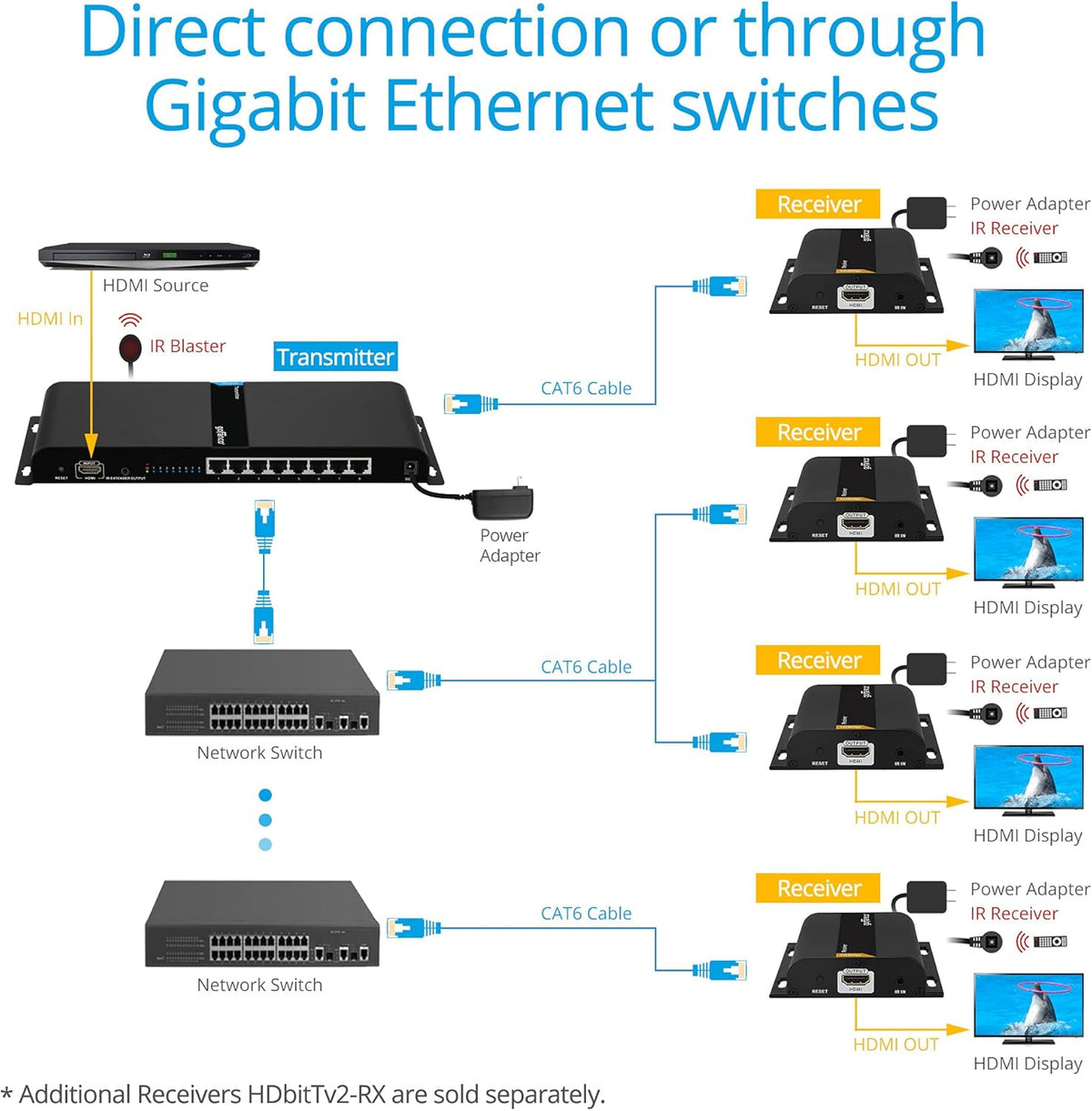

NETWORK DISTRIBUTION �C Direct connection from Transmitter to Receivers or through IP network via 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately. Note that each VLAN can only accommodate 1 transmitter (TX). *Note: Don't use with home routers
VIDEO RESOLUTIONS & AUDIO �C Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video and audio experience; Supports 2-channel Stereo Audio; * Note: There��s a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION �C You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable. *Note: One directional IR control from RX side to TX
SIMPLE INSTALLATION �C No driver required; Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select ��Ask a Question�� if you have any questions or concerns
1080p 8 Port HDMI Extender Splitter over CAT5e / CAT6 L4100
Sale price
$34.90
Regular price $110.49
Shipping calculated at checkout.
HDMI EXTENDER SPLITTER KIT �C Includes 1 Transmitter and 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 up to 394ft simultaneously. *Important*: HDbitT8Pv2 (this kit, version 2.0) is not backward compatible with the previous version and its receivers (RX). If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes
NETWORK DISTRIBUTION �C Direct connection from Transmitter to Receivers or through IP network via 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately. Note that each VLAN can only accommodate 1 transmitter (TX). *Note: Don't use with home routers
VIDEO RESOLUTIONS & AUDIO �C Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video and audio experience; Supports 2-channel Stereo Audio; * Note: There��s a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION �C You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable. *Note: One directional IR control from RX side to TX
SIMPLE INSTALLATION �C No driver required; Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select ��Ask a Question�� if you have any questions or concerns
| HDMIExt8P | HDExt4P-Pro | HDExt4K-4P | HDbitT4Pv2 | HDBaseT4P | HDbitT8Pv2 | |
|---|---|---|---|---|---|---|
| Transmission Range | 40m (130ft) at 1080p@60Hz | 50m (165ft) at 1080p@60Hz | 30m (98ft) at 4K/60Hz -50m (164ft) at 4K/30Hz - 60m (197ft) at 1080p/60Hz | 120m (395ft) at 1080p@60Hz | 150m (492ft) at 1080p@60Hz | 120m (395ft) at 1080p@60Hz |
| Resolution/HDR | 1080p@60Hz | 3D | 1080p@60Hz | 3D | 4K @60Hz (YUV 4:4:4 8-bit) | 1080p @60Hz | 3D | HDR | 1080p@60Hz | 1080p@60Hz | 3D | 1080p@60Hz |
| HDMI/HDCP | 1.3/1.2 | 1.3/1.2 | 2.0/2.2 | 1.3/1.4 | 1.4/2.2 | 1.3/1.4 |
| HDMI Loop Out | ||||||
| HDBaseT | ||||||
| Power Over Cable (PoC) | ||||||
| RS-232 | ||||||
| EDID Management | ||||||
| Downscaling | ||||||
| Available Sizes | 8-Port | 2-Port & 4-Port | 2-Port & 4-Port | 4-Port & 8-Port | 4-Port | 4-Port & 8-Port |
