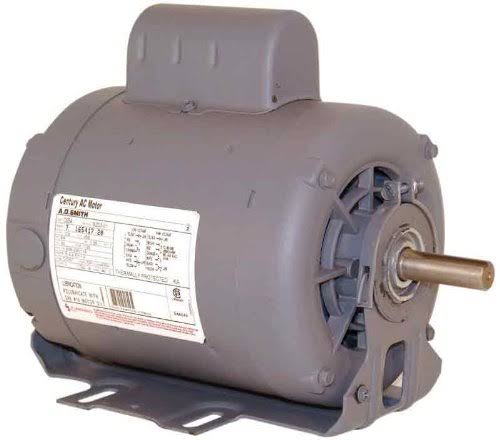

56 Frame 3/4 HP 230/115 Volts 1725 RPM Capacitor Start Motor B650
Sale price
$18.99
Regular price $92.29
Skip to product information
SKU - UC691 UPC - 786674016683 Resilient Base Capacitor start / capacitor run Single and two speed Length 16.00 Width 8.00 Height 10.00 Dimension Unit of Measure IN Weight 27.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.75 Power Rating (In KW) 0.56 Speed (Max) 1725 Voltage 230/115 Frame Size 56 Enclosure Type Drip Proof Rotation Reversible Counterclockwise Mounting Type Cushion Base Max Ambient 40��C Shaft Diameter ( In in.) 0.625 C Dim 11.13 Connection Drawing No 17050317. PCX DE Bearing Type Sleeve Duty Continuous Electrical Type Capacitor Start , Special Service Frame Length 5.13 Frame Material Rolled Steel Frame Type J56 Frequency 60 HP2 3/4 Number of Poles 4 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No C691-S01 Service Factor 1 Shaft Extension 1.97 Shaft Type Keyed Speed2 1725 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Century
56 Frame 3/4 HP 230/115 Volts 1725 RPM Capacitor Start Motor B650
Sale price
$18.99
Regular price $92.29
Shipping calculated at checkout.
